【使用参数】
1. 最高转数：1000/min
2.最高温度：100℃
3.最高压力：1.0MPa
4.适用介质：水、空气、盐水等
1.弯头 2.锁紧螺母 3.弹簧 4.黄铜壳体 5.弹簧垫
6.平角垫 7.辅助密封圈 8.密封环 9.轴用挡圈
10.轴承 11.孔用挡圈 12.不锈钢转子 13.内管
|

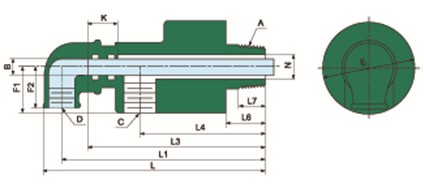

H 型双通路 内管旋转式 螺纹连接 |
|
规格 |
型号 |
A |
B |
C |
D |
E |
F1 |
F2 |
K |
L |
L1 |
L3 |
L4 |
L6 |
L7 |
N |
Q |
R |
S |
T |
U |
|
15 |
HS-X15-6 |
Rc1/2 |
10 |
Rc1/2 |
Rc1/2 |
55 |
28 |
25 |
15 |
147 |
135 |
125 |
90 |
30 |
17 |
12 |
- |
- |
- |
- |
- |
|
20 |
HS-X20-8 |
Rc3/4 |
12 |
Rc3/4 |
Rc1/2 |
62 |
31 |
30 |
32 |
170 |
155 |
140 |
95 |
30 |
20 |
16 |
- |
- |
- |
- |
- |
|
25 |
HS-X25-10 |
Rc1 |
16 |
Rc3/4 |
Rc1/2 |
74 |
37 |
33 |
26 |
175 |
160 |
145 |
103 |
33 |
20 |
20 |
- |
- |
- |
- |
- |
|
32 |
HS-X32-15 |
Rc1-1/4 |
20 |
Rc1-1/4 |
Rc1/2 |
90 |
45 |
38 |
32 |
211 |
196 |
182 |
128 |
42 |
25 |
30 |
- |
- |
- |
- |
- |
|
40 |
HS-X40-20 |
Rc1-1/2 |
25 |
Rc1-1/2 |
Rc3/4 |
95 |
48 |
43 |
36 |
232 |
210 |
185 |
130 |
40 |
25 |
36 |
- |
- |
- |
- |
- |
|
52 |
HS-X50-25 |
Rc2 |
31 |
Rc1-1/2 |
Rc1 |
122 |
60 |
51 |
46 |
300 |
278 |
255 |
182 |
60 |
35 |
48 |
- |
- |
- |
- |
- |
|
65 |
HS-X65-32 |
Rc2-1/2 |
40 |
Rc2 |
Rc1-1/4 |
156 |
78 |
62 |
50 |
350 |
325 |
295 |
211 |
68 |
40 |
62 |
- |
- |
- |
- |
- |
|
80 |
HS-X80-40 |
Rc3 |
46 |
Rc2-1/2 |
Rc1-1/2 |
160 |
80 |
70 |
50 |
383 |
353 |
286 |
231 |
90 |
35 |
75 |
- |
- |
- |
- |
- |
