介质 |
压力 |
温度 |
转速（RPM) |
|
水 |
1/4"~1-1/2"→50 bar / 725 PSI |
130oC / 265oF |
1/4"~3/4"→3500 1"→3000
1-1/4"~1-1/2"→2500 2"→750
|
|
2"→40 bar / 580 PSI |
|
热油 |
5 bar / 70PSI |
180oC / 355oF |
S系列通用型旋转接头选用注意事项：
1、当冷却水达到50度时，液体压力不要超过8bar。在实际应用中，当热油的温度超过175度时，转速不宜超过300rpm。
当有正、反转向应用时，建议选用法兰连接。
2、两种密封组合可供客户选用：
N型（标准型）— 石墨密封，应用于过滤水、热油、饱和蒸汽的间歇供给情况；
D型（重负荷型）— 碳化钨（或碳化硅）密封，应用于劣质过滤水及磨削液的密封。
|

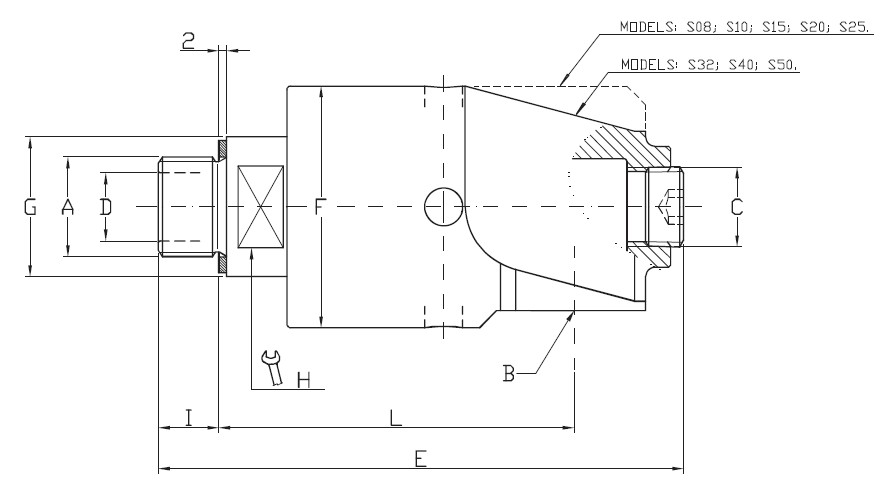

型号 |
单一通路 螺纹连接 |
|
水 N |
水 D |
热油 |
A |
B |
C |
øD |
E |
øF |
G |
H |
I |
L |
KG |
|
S08-300-01R |
S08-301-01R |
S08-400-01R |
G 1/4" RH |
G 1/4" |
— |
7 |
88 |
43 |
20 |
17 |
11 |
67 |
0.6 |
|
S08-300-02L |
S08-301-02L |
S08-400-02L |
G 1/4" LH |
|
S10-300-01R |
S10-301-01R |
S10-400-01R |
G 3/8" RH |
G 3/8" |
G 1/4" |
9 |
106 |
43 |
25 |
17 |
13 |
73 |
0.7 |
|
S10-300-02L |
S10-301-02L |
S10-400-02L |
G 3/8" LH |
|
S15-300-01R |
S15-301-01R |
S15-400-01R |
G 1/2" RH |
G 1/2" |
G 3/8" |
13 |
120 |
55 |
30 |
24 |
13 |
82 |
1.3 |
|
S15-300-02L |
S15-301-02L |
S15-400-02L |
G 1/2" LH |
|
S20-300-01R |
S20-301-01R |
S20-400-01R |
G 3/4" RH |
G 3/4" |
G 1/2" |
18 |
139 |
64 |
37 |
30 |
16 |
94 |
1.8 |
|
S20-300-02L |
S20-301-02L |
S20-400-02L |
G 3/4" LH |
|
S25-300-01R |
S25-301-01R |
S25-400-01R |
G 1" RH |
G 1" |
G 3/4" |
23 |
162 |
70 |
45 |
36 |
20 |
105 |
2.2 |
|
S25-300-02L |
S25-301-02L |
S25-400-02L |
G 1" LH |
|
S32-300-01R |
S32-301-01R |
S32-400-01R |
G 1-1/4" RH |
G 1-1/4" |
G 1" |
31 |
181 |
85 |
55 |
46 |
22 |
119 |
3.5 |
|
S32-300-02L |
S32-301-02L |
S32-400-02L |
G 1-1/4" LH |
|
S40-300-01R |
S40-301-01R |
S40-400-01R |
G 1-1/2" RH |
G 1-1/2" |
G 1-1/4" |
36 |
208 |
92 |
60 |
50 |
24 |
132 |
5 |
|
S40-300-02L |
S40-301-02L |
S40-400-02L |
G 1-1/2" LH |
|
S50-300-01R |
S50-301-01R |
S50-400-01R |
G 2" RH |
G 2" |
G 1-1/4" |
48 |
223 |
110 |
70 |
60 |
25 |
139 |
8.2 |
|
S50-300-02L |
S50-301-02L |
S50-400-02L |
G 2" LH |
|

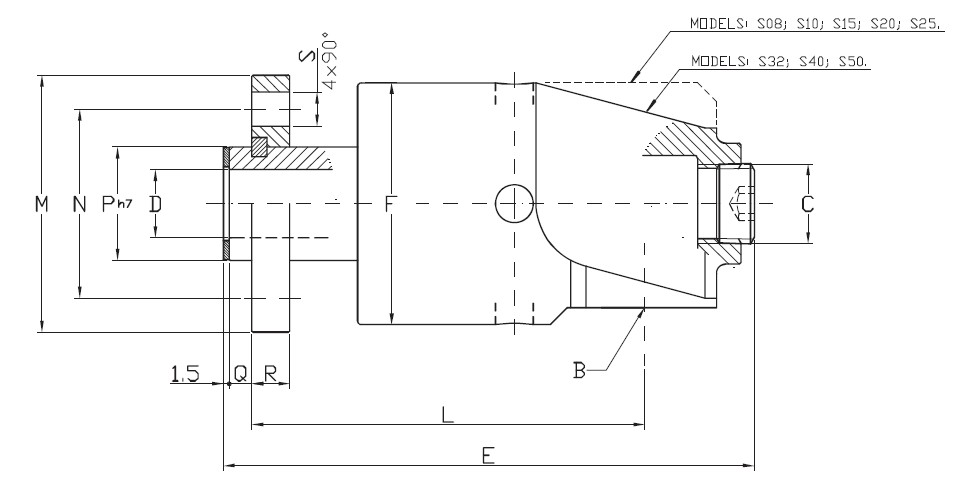

型号 |
单一通路 法兰连接 |
|
水 N |
水 D |
热油 |
B |
C |
øD |
E |
øF |
L |
øM |
ØN |
ØPh7 |
Q |
R |
S |
KG |
|
S10-300-03F |
S10-301-03F |
S10-400-03F |
G 3/8" |
G 1/4" |
9 |
109 |
43 |
82 |
53 |
38 |
18 |
6 |
8 |
9 |
0.8 |
|
S15-300-03F |
S15-301-03F |
S15-400-03F |
G 1/2" |
G 3/8" |
13 |
125 |
55 |
92 |
60 |
45 |
25 |
6 |
10 |
9 |
1.5 |
|
S20-300-03F |
S20-301-03F |
S20-400-03F |
G 3/4" |
G 1/2" |
18 |
137 |
64 |
101 |
68 |
50 |
30 |
6 |
10 |
9 |
2 |
|
S25-300-03F |
S25-301-03F |
S25-400-03F |
G 1" |
G 3/4" |
23 |
164 |
70 |
119 |
78 |
60 |
36 |
7 |
12 |
9 |
2.6 |
|
S32-300-03F |
S32-301-03F |
S32-400-03F |
G1-1/4" |
G 1" |
31 |
182 |
85 |
133 |
94 |
70 |
44 |
8 |
12 |
11 |
4 |
|
S40-300-03F |
S40-301-03F |
S40-400-03F |
G1-1/2" |
G1-1/4" |
36 |
203 |
92 |
139 |
99 |
78 |
52 |
10 |
14 |
11 |
5.5 |
|
S50-300-03F |
S50-301-03F |
S50-400-03F |
G 2" |
G1-1/4" |
48 |
224 |
110 |
154 |
119 |
95 |
65 |
10 |
14 |
11 |
9 |
